Bypass set 45 degrees for heat pumps Ø 50 mm pool heating pool pool heating
They have a pool and want to heat it. This is usually implemented via a heat pump. In order to integrate these into the filter circuit, we offer here the bypass set 45 degrees for Ø 50 mm piping.
Heat pumps must not be integrated directly, as they can not process such a high water flow. Also, the water must first heat up so why a regulation of the flow rate is necessary.

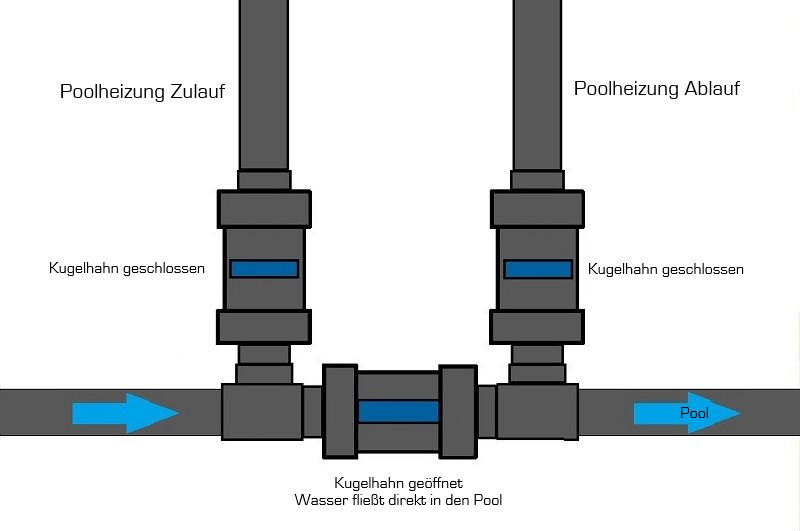

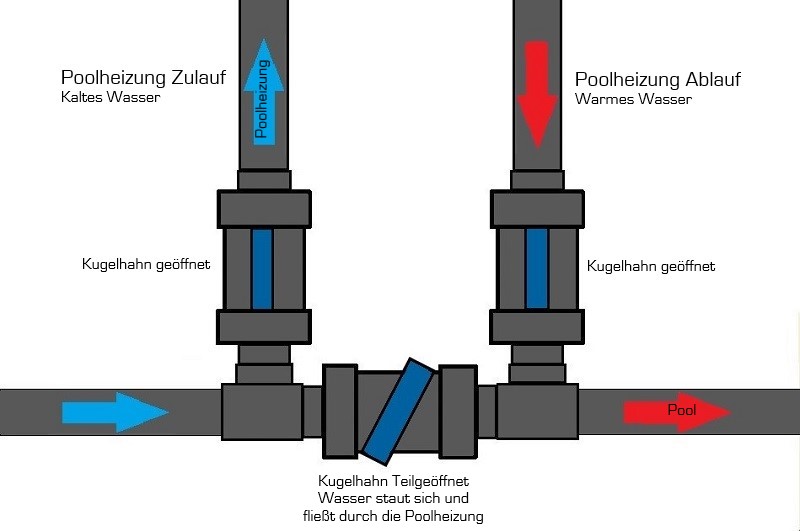

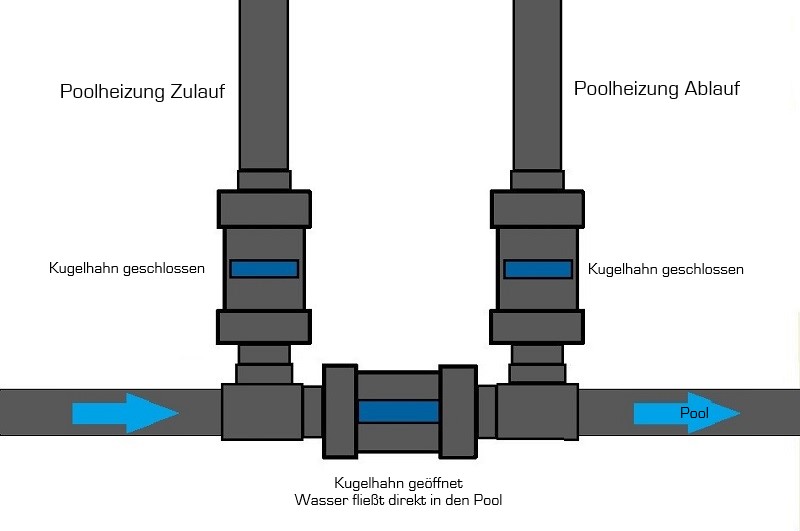

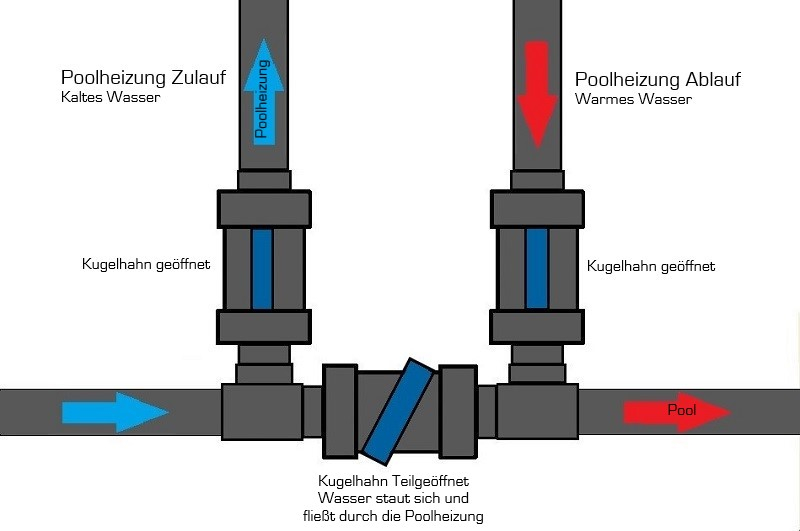

The bypass is designed so that the water is transported to the heat pump with the help of your sand filter system. The bypass set branches off some water from your pool and forwards it to the heat pump. The water then returns to the normal cycle.

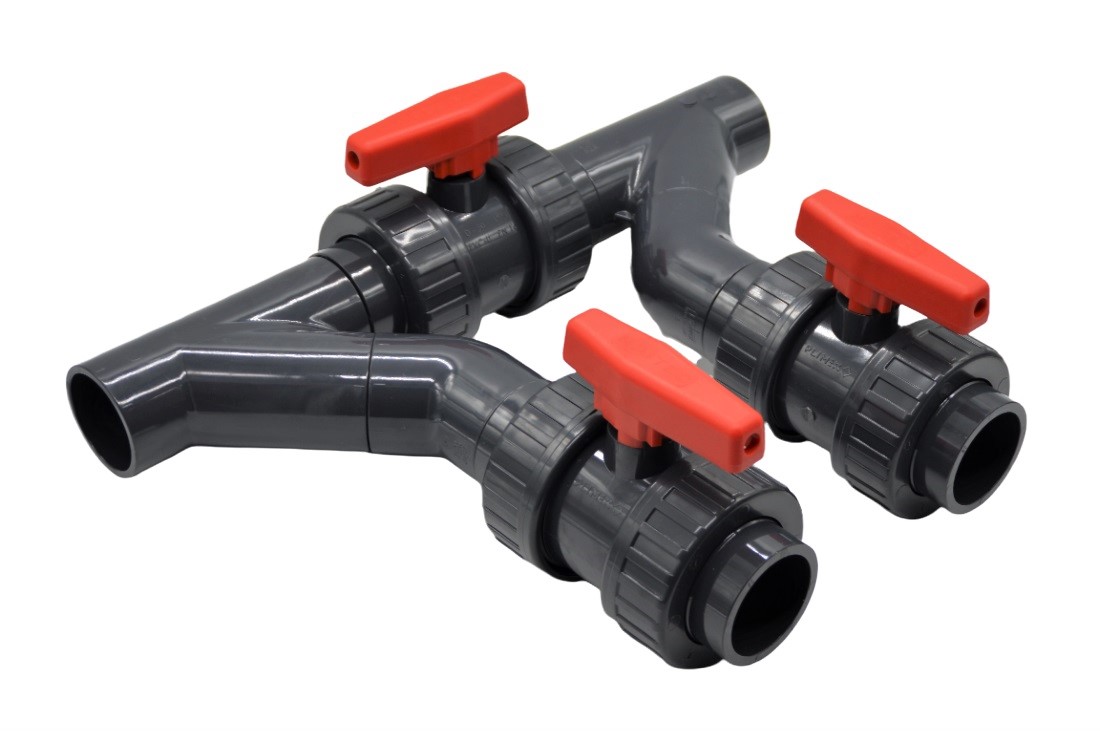

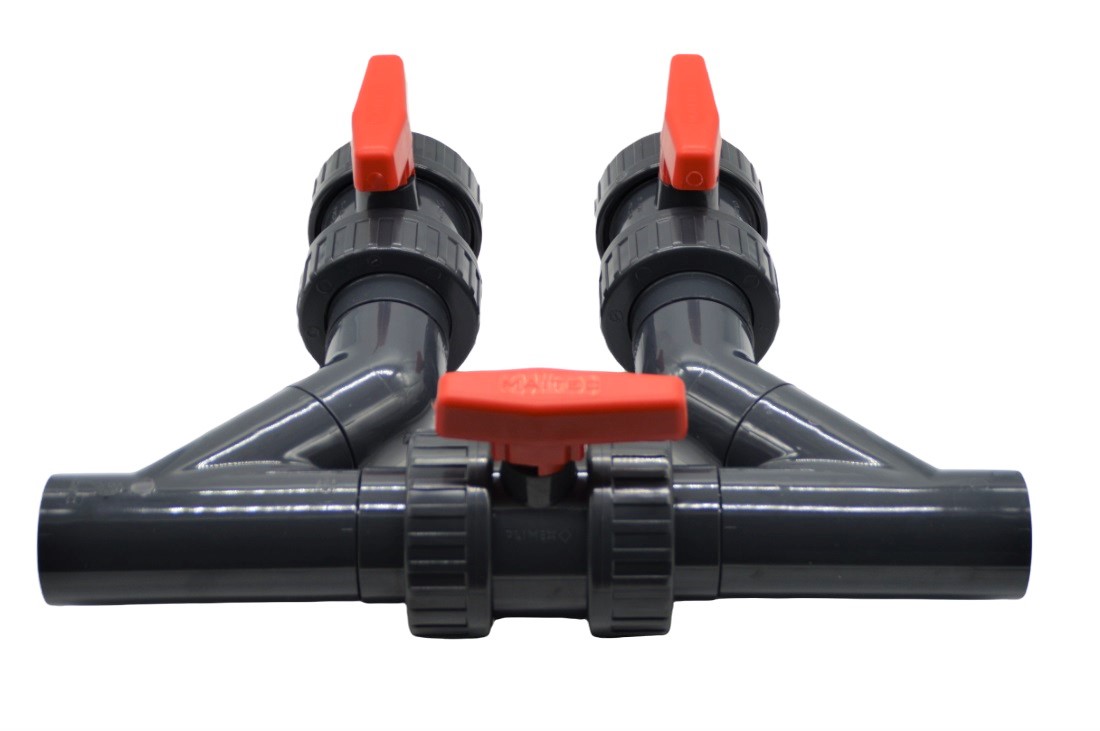

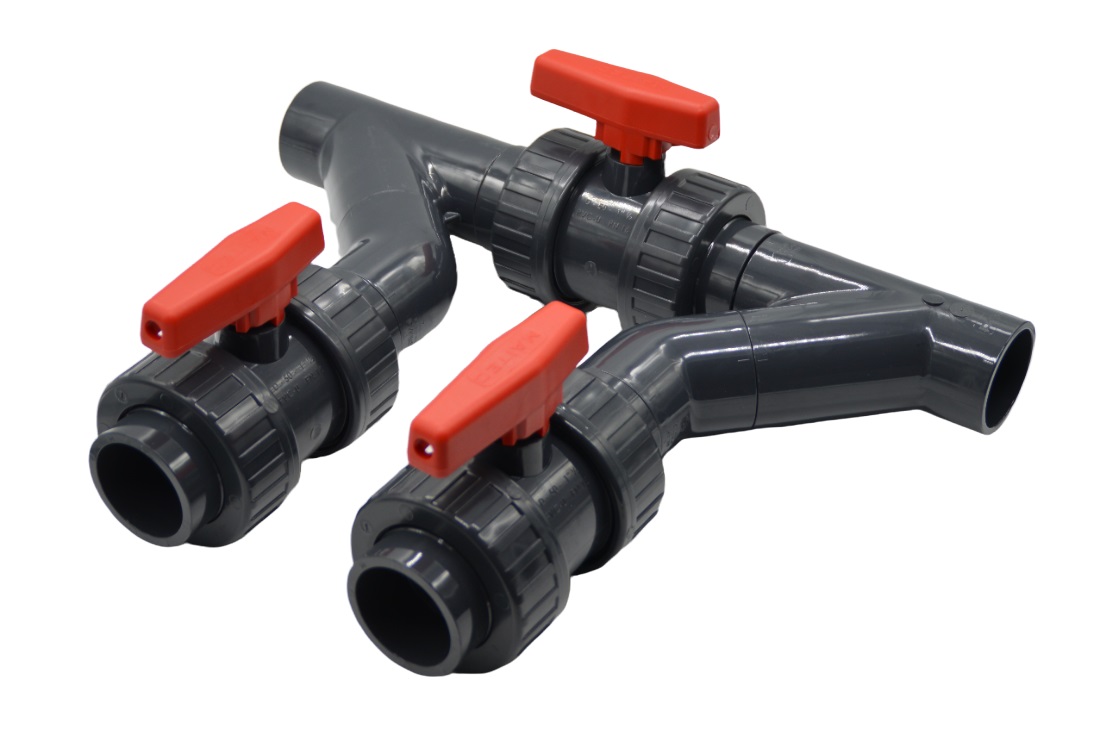

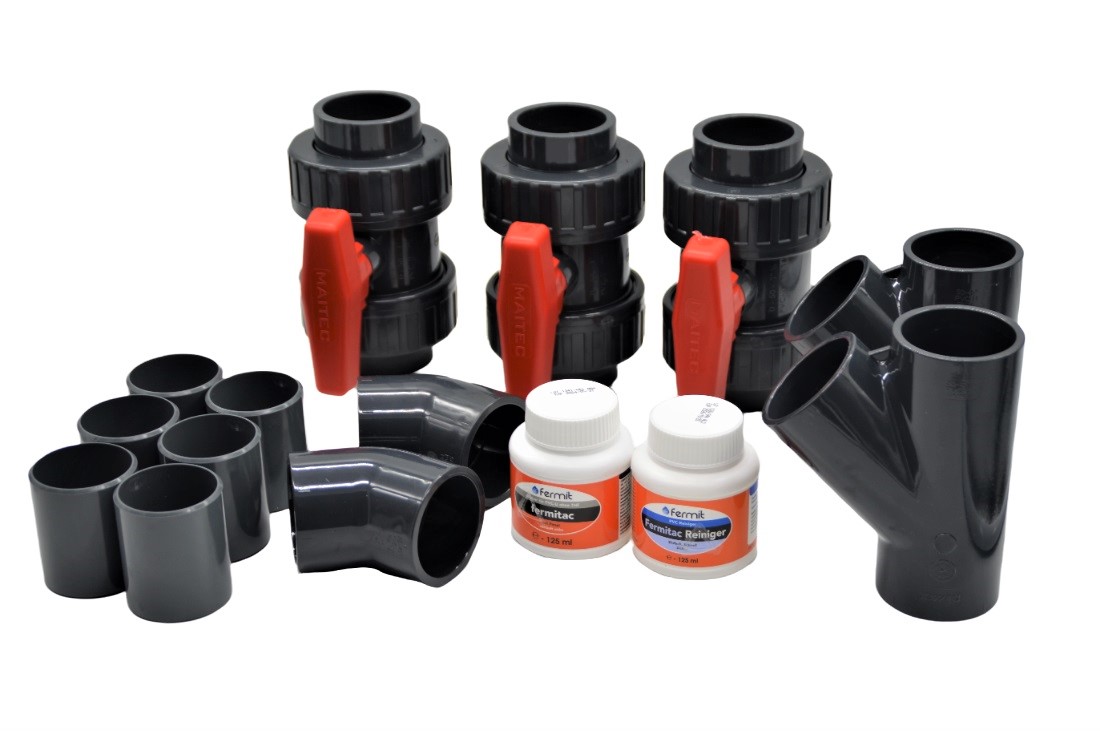

Included in this set is (Ø 50mm):
- 3x PVC-U ball valve Plimex series
- 2x PVC U tee 45 degrees
- 2x PVC-U angle 45 degrees
- 6x 6 cm PVC-U Rohr Grau Verbinder
- 1x PVC-U glue 125ml
- 1x PVC-U cleaner 125ml
All products come individually and unglued to you. All PVC fittings and fittings in this set have a diameter of 50mm.
